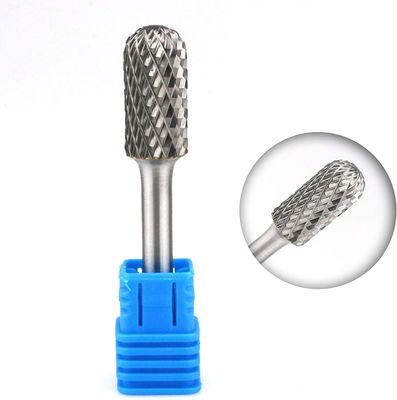

Steel Casting Carbide Rotary Burr SA Type For Grinding Cutting
100 PIECES
MOQ
Steel Casting Carbide Rotary Burr SA Type For Grinding Cutting
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Sichuan, China
Brand Name: KTS
Certification: ISO 9001
Model Number: A/B/C
High Light:

Grinding Polishing Carbide Rotary Burr

,

Carbide Rotary Burr SA Type

,

3mm Hardened Steel Carbide Rotary Burr

Payment & Shipping Terms
Packaging Details: PLASTIC CASE
Delivery Time: 7-30 Days
Payment Terms: T/T
Supply Ability: 250000 Piece/Pieces per Month
Specifications
Materials: Tungsten Carbide
Type: SA,SB,SC
Color: Silver/Golden
LOGO: Customized
Application: Machining Iron,Steel Casting,Steel. Hardened Steel,Copper
Cutting Types: Single , Double , Aluminium & Diamond Cut, Coarse Cut
Certificate: ISO9001:2008
Port: Chengdu/Guangzhou/Shanghai/Shenzhen
Product Description

Tungsten Carbide Burrs For Grinding, Cutting And Polishing High Quality

Technical date

S.N.

MATERIAL

1a

Steel

1b

Hard steels

2

Stainless steel

3

Cast iron

4

Titanium

5

Nickel

6

Copper/Copper alloys

7

Aluminum

8

Plastics

9

Cement



Guide to running speeds

mat nr.

MAX RPM

3mm/0.123"

90,000

6mm/0.250"

50,000

10mm/0.375"

40,000

12mm/0.500"

35,000

16mm/0.625'

25,000

1a

60,000-80,000

35,000-45,000

22,500-35,000

20,000-30,000

15,000-20,000

1b

60,000-80,000

30,000-45,000

19,000-30,000

15,000-22,500

12,000-18,000

2

60,000-80,000

30,000-45,000

19,000-30,000

15,000-22,500

12,000-18,000

3

45,000-80,000

22,500-45,000

15,000-35,000

11,000-30,000

9,000-20,000

4

60,000-80,000

30,000-45,000

19,000-30,000

15,000-22,500

12,000-18,000

5

60,000-80,000

30,000-45,000

19,000-30,000

15,000-22,500

12,000-18,000

6

45,000-80,000

22,500-45,000

15,000-35,000

11,000-30,000

3,000-20,000

7

30,000-80,000

15,000-45,000

10,000-35,000

7,000-30,000

6,000-20,000

8

30,000-80,000

15,000-45,000

10,000-35,000

7,000-30,000

6,000-20,000

9

60,000-80,000

30,000-45,000

19,000-30,000

15,000-22,500

12,000-18,000



Features available across the range include:



Shake



  • Toughened and hardened steel shanks (above 6mm)
  • Provides rigidity and strength
  • Prevents bending and reduces vibrations, resulting in longer tool life
  • Ground to h6 (carbide) and h7 (steel) for improved holding

Ball Nose Geometry



  • Skip flute grinding
  • Increased strength at the centre
  • Reduced chance of swarf congestion and chipping
  • Improved cutting action closer to the centre

Brazing



  • Special brazing elements provide excellent braze strength
  • Excellent impact strength able to withstand high forces
  • Able to withstand higher temperatures without failing

We are committed to being the leading manufacturer and supplier of carbide burs in the world. Through continuous development of new and innovative products and services, using state-of-the-art technology and skilled, motivated people, we strive to provide you with cost-effective solutions and the support that you need to increase your competitive advantage.
