Rotary Cutter Tungsten Carbide Drill Bits Carbide Set Tungsten Carbide Rotary Burr Files

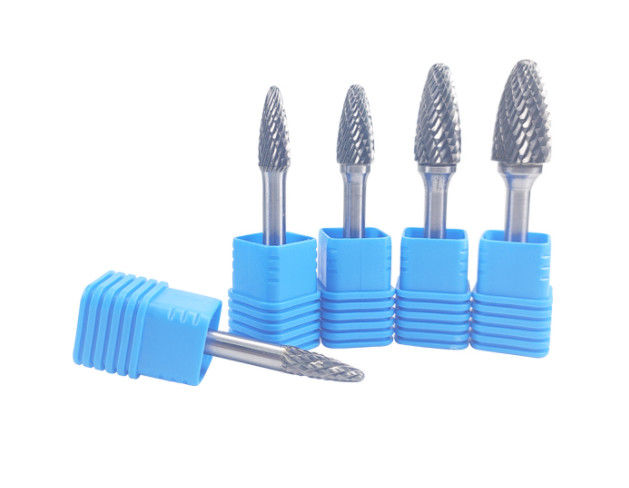

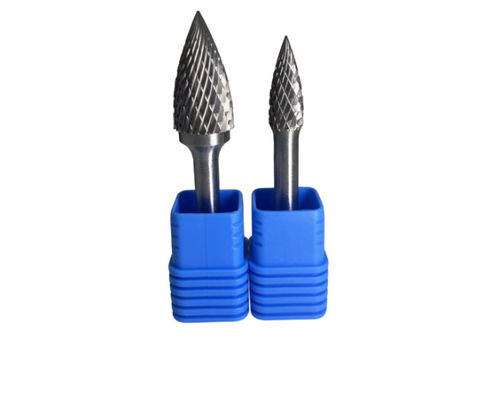

Carbide Tree Burrs
Use for rounding off edges and making concave cuts. Use the pointed end for cutting in hard to reach areas and acute angled contours.
Carbide Inverted Cone Burrs
Use inverted cone shaped tungsten carbide burrs for making v-cuts and rear side chamfering.
Carbide Pointed Cone & Carbide Round Nose or Ball Nose Burrs
Good for rounded edges and surface finishing in difficult to reach areas or tight and narrow angles and contours. The round nose or ball nose cone are often referred to as a taper shape.
Cylinder Burrs. Round Nose/Ball nose/End Cut
Choose from an end cut cylinder (with a cutting edge on the end) for contour finishing. Cylinder without end cut (flat on the end and no cutting edge) for contour finishing and right angled corners or a round nose or ball nose shape which is a cylinder shaped carbide burr but with a rounded head.
Oval Burrs
Flame Burrs
A wheel shaped burr with a smooth top and fluted sides. Great for channel work and shaping.
Countersink Burrs
Choose from 60 degree or 90 degree angle countersink burs, sometimes referred to carbide cone burrs. These are ideal for beveling, counterboring, chamfering and for getting into acute angled areas of your work.
Main uses:
Tungsten steel grinding head is widely used in machinery, aviation, automobile, shipbuilding, chemical industry, process carving and other industrial departments, the effect is remarkable.
(1) fine processing of various metal mold cavity, such as processing shoe mold and so on.
(2) all kinds of metal and non-metal engraving, such as mold engraving, art gift trimming.
(3) Clean the flaps, burrs and welds of casting, forging and welding parts, such as machine casting factory, shipyard, automobile factory, etc.
(4) chamfering and grooving processing of various mechanical parts, cleaning pipes, finishing the surface of the inner hole of mechanical parts, such as machinery factories, repair factories, etc.
(5) Repair of impeller runner, such as automobile engine factory.
Technical date
| S.N. | MATERIAL |
| 1a | Steel |
| 1b | Hard steels |
| 2 | Stainless steel |
| 3 | Cast iron |
| 4 | Titanium |
| 5 | Nickel |
| 6 | Copper/Copper alloys |
| 7 | Aluminum |
| 8 | Plastics |
| 9 | Cement |
Guide to running speeds
|
mat nr. MAX RPM |
3mm/0.123" 90,000 |
6mm/0.250" 50,000 |
10mm/0.375" 40,000 |
12mm/0.500" 35,000 |
16mm/0.625' 25,000 |
| 1a | 60,000-80,000 | 35,000-45,000 | 22,500-35,000 | 20,000-30,000 | 15,000-20,000 |
| 1b | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 2 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 3 | 45,000-80,000 | 22,500-45,000 | 15,000-35,000 | 11,000-30,000 | 9,000-20,000 |
| 4 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 5 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 6 | 45,000-80,000 | 22,500-45,000 | 15,000-35,000 | 11,000-30,000 | 3,000-20,000 |
| 7 | 30,000-80,000 | 15,000-45,000 | 10,000-35,000 | 7,000-30,000 | 6,000-20,000 |
| 8 | 30,000-80,000 | 15,000-45,000 | 10,000-35,000 | 7,000-30,000 | 6,000-20,000 |
| 9 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
FAQ
Q: How long is your delivery time?
A: Generally,it will take 7 to 25 days after order confirm.The specific delivery time depends on the specific product and the quantity you needed.
Q: Do you provide samples? iIs it free or charged?
A:Yes, we can offer a sample for free charge but the freight is at customers’ cost.
Q. Do you test all your goods before delivery?
A: Yes, we will do 100% test on our cemented carbide products before delivery.
