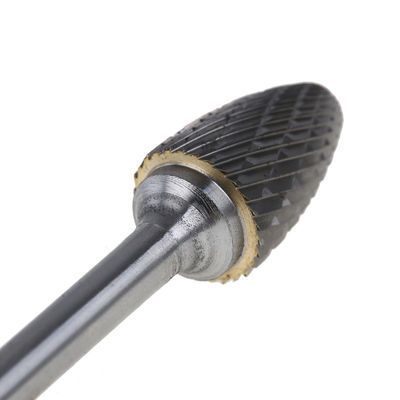

Carbide Rotary File/Tungsten Steel Grinding Head/Alloy Milling Cutter/Polishing/G-Pointed Tree Type Double Cutting
The difference between double slot and single slot:
The double groove has a cross pattern, which is suitable for low-density objects. For example: used for wood, plastic, aluminum, etc.! The cross pattern has a fast chip removal speed, and it is not easy to block the pattern when grinding and engraving, so it is more suitable to open a double groove on a soft object!
The texture of the single groove determines that it is not ideal to use softer objects, because when the single groove knife is working and cutting, the broken waste will easily block the groove, resulting in shallower groove texture and reduced cutting ability; this is what we often say, The knife is not fast! Single slot is more suitable for iron, copper, steel and other hard objects.
Carbide rotary file features:
Cemented carbide has a series of excellent properties such as high hardness, wear resistance, good strength and toughness, and heat resistance, especially its high hardness and wear resistance, which remain basically unchanged even at a temperature of 500°C. It still has high hardness at 1000°C.
Cemented carbide is widely used as tool materials, such as turning tools, milling cutters, planers, drills, boring cutters, etc., for cutting cast iron, non-ferrous metals, plastics, chemical fibers, graphite, glass, stone and ordinary steel, and can also be used for cutting resistant Hot steel, stainless steel, high manganese steel, tool steel and other difficult-to-process materials.
1. High hardness (86~93HRA, equivalent to 69~81HRC);
2. Good hot hardness (up to 900~1000℃, keeping 60HRC);
3. Good abrasion resistance.
The cutting speed of cemented carbide tools is 4 to 7 times higher than that of high-speed steel, and the tool life is 5 to 80 times higher. Manufacturing molds, measuring tools, life span is 20-150 times longer than alloy tool steel. It can cut hard materials around 50HRC.
Technical date
S.N. | MATERIAL |
1a | Steel |
1b | Hard steels |
2 | Stainless steel |
3 | Cast iron |
4 | Titanium |
5 | Nickel |
6 | Copper/Copper alloys |
7 | Aluminum |
8 | Plastics |
9 | Cement |
Guide to running speeds
mat nr. MAX RPM | 3mm/0.123" 90,000 | 6mm/0.250" 50,000 | 10mm/0.375" 40,000 | 12mm/0.500" 35,000 | 16mm/0.625' 25,000 |
1a | 60,000-80,000 | 35,000-45,000 | 22,500-35,000 | 20,000-30,000 | 15,000-20,000 |
1b | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
2 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
3 | 45,000-80,000 | 22,500-45,000 | 15,000-35,000 | 11,000-30,000 | 9,000-20,000 |
4 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
5 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
6 | 45,000-80,000 | 22,500-45,000 | 15,000-35,000 | 11,000-30,000 | 3,000-20,000 |
7 | 30,000-80,000 | 15,000-45,000 | 10,000-35,000 | 7,000-30,000 | 6,000-20,000 |
8 | 30,000-80,000 | 15,000-45,000 | 10,000-35,000 | 7,000-30,000 | 6,000-20,000 |
9 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
sgspro tungsten carbide burs are manufactured in compliance with the highest standards. Our comprehensive product portfolio offers a broad range of reliable and market-proven solutions for every application. Our know-how and expertise allow us to continuously improve our offering to provide outstanding quality and deliver excellent performance across a wide range of industries, optimizing processes in regards to economic efficiency, safety and process optimisation.
Matters needing attention:
1. Mainly used on electric or pneumatic tools.
2. The speed is generally 6000-50000 rpm.
3. When using, the tool should be clamped upright, and the cutting method should be up-cut milling to avoid reciprocating cutting.
4. To prevent chip splashing during work, please use protective glasses.
