Silver 6mm Double Cut Tree Shape With Radius End Grinding Die Grinder Bits Carbide Rotary Burr
100 PIECES
MOQ
$0.99 - $9.99/piece
Price
Silver 6mm Double Cut Tree Shape With Radius End Grinding Die Grinder Bits Carbide Rotary Burr
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Sichuan, China
Brand Name: KTS
Certification: ISO9001-2008
Model Number: L
High Light:

Silver 6mm Carbide Rotary Burr

,

Double Cut Carbide Rotary Burr

,

Radius End Carbide Grinding Burrs

Payment & Shipping Terms
Packaging Details: Plastic Case
Delivery Time: 7-30 Days
Payment Terms: T/T, Western Union
Supply Ability: 250000 Piece/Pieces per Month
Specifications
Materials: Tungsten Carbide
Grade: YG10X
Color: Silver
LOGO: As Per Customers' Requirements
Sample: Available
Size: 3-25mm
Type: SL
Certificate: ISO9001-2008
Product Description

Silver 6mm Double Cut Tree Shape With Radius End Grinding Die Grinder Bits Carbide Rotary Burr



Using tungsten Carbide Rotary Burr is an effective way to realize merchanization in hand work operations, in the industries of airplane, ship building,automobile, machinery , chemistry etc. Carbide rotary burrs can be widely used in maching iron, steel casting, carbon steel, alloy steel, stainless steel, copper aluminium etc.



Carbide burrs come in both 1/4" shank and 1/8" shank. All burrs with a 1/4" diameter and under are solid carbide, all burrs over 1/4" diameter have hardened steel shanks. A super cut is standard on all burrs. Resharpening and extra long shanks are available. All burrs provide an accurate and precise cut.

Single Cut Carbide Burr Cutting Tools

Single cut is a general purpose tool designed for cast iron, steel, some copper and brass and other ferrous materials. It will give good material removal and good workpiece finishes.

Double Cut Carbide Burr Cutting Tools

Double cut allows for rapid stock removal in harder materials. The addition of the left hand flutes reduce the pulling action, allowing better operator control. It reduces the size of the chips and can be used at slower than normal speeds.

Non-Ferrous Aluminum Cut Carbide Burrs

Non-ferrous are exactly what you would expect them to be. They are specially designed to be used on non-ferrous materials such as aluminum, copper and magnesium.



Item NO. Diameter Length Shank Overall
L0616M06 6mm 16mm 6mm 56mm
L0822M06 8mm 22mm 6mm 62mm
L1025M06 10mm 25mm 6mm 65mm
L1228M06 12mm 28mm 6mm 68mm
L1633M06 16mm 33mm 6mm 73mm



Advantage



1, For metal and non-metal (marble, bones and jade) process

2, Can replace the grinding wheel

3, High productive effeciency

4, Long life time with high wearable resistance

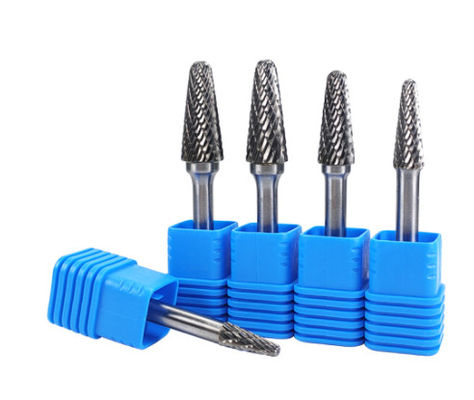

Silver 6mm Double Cut Tree Shape With Radius End Grinding Die Grinder Bits Carbide Rotary Burr 0

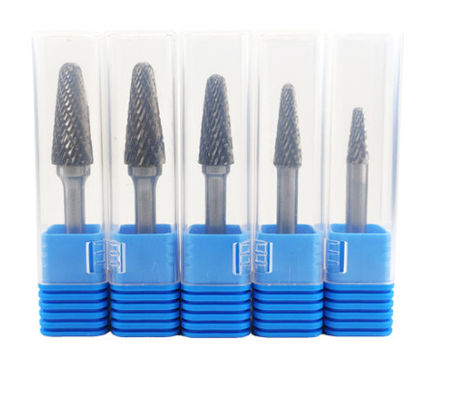

Silver 6mm Double Cut Tree Shape With Radius End Grinding Die Grinder Bits Carbide Rotary Burr 1

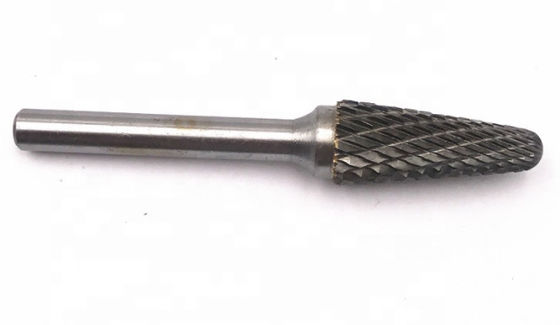

Silver 6mm Double Cut Tree Shape With Radius End Grinding Die Grinder Bits Carbide Rotary Burr 2

The Carbide Rotary Burrs is an effective way to realize mechanization The Carbide Rotary Burrs is an effective way to realize mechanization. In airplanes, shipbuilding, automobiles, machinery,

Chemistry, etc. Cemented carbide rotating burrs can be widely used for processing iron, cast steel, carbon steel, alloy steel, stainless steel, hardened steel, copper and aluminum, etc.

· Processing various metal materials, including hardened steel ≤HRC65.
· Instead of a small grinding wheel, there is no dust pollution.
· The productivity is several times higher than using hand tools, and three to five times higher than using small grinding wheels.
· The burr life is ten times longer than that of high-speed steel and fifty times longer than the life of a small grinding wheel.
· Finish all kinds of mold cavities.
· Remove burrs from castings and forgings and welding spatter on welding components.
· Chamfers, beads or grooves on mechanical parts.
· Chamfer or burr the pipe.
· Polish the impeller channel.
· Grind the hole into a precise shape.
