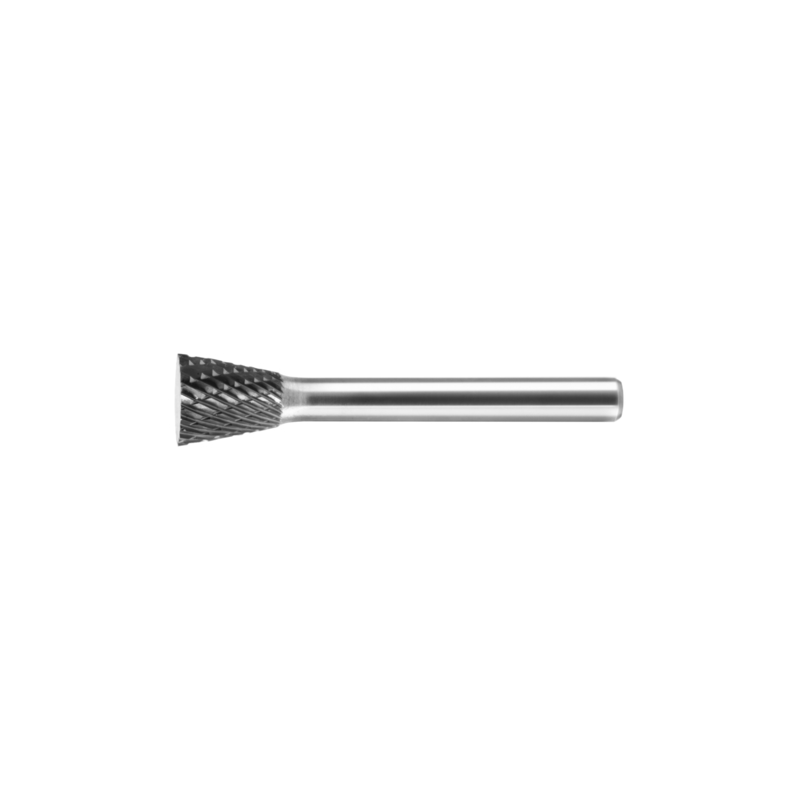

SN Carbide Burs - Inverted Taper
Applications:
Industrial sectors such as machinery, automobiles, ships, chemical industry, craft carving, etc.
Burr Application:
- Deburring
- Contouring
- Edge chamfering/rounding
- Milling out in prepareation for build-up-welding
- Prepareation of weld seams/weld dressing
- Cleanning cast material
- Modification of workpiece geometry
- Extremly high stock removal performance on all austenitic ,rust-and acid-resistant steel, stainless steel
- Substantially reduced vibration and less noise
Burr Shapes:
- Cylindrical
- Cylindrical Radius End
- Tree Radius
- Cone Radius End
Function:
1. It can be used to finish Various metal mold cavities;
2. Clean up burrs, burrs and welds of castings, forgings and weldments;
3. Finishing the inner hole surface of mechanical parts;
4. It can be used into various metal and non-metal craft carving etc.
Precautions:
1. Before operate, please read the use of speed to select the appropriate speed range.
2. Choose appropriate shape, diameter and tooth shape for different processing.
3. Choose the right electric grinder, and its performance is stable.
4. The length of the exposed part of the shank clamped in the chuck is at most 10mm. (Except the extension handle, the speed is different.)
5. Idling before use to ensure the concentricity of the rotary burrs is good, eccentricity and vibration will cause premature wear and damage to the workpiece.
6. It is not appropriate to use too much pressure when use it. Too much pressure will reduce the life and efficiency of the tool.
7. Check that the workpiece and electric grinder are clamped correctly and tightly before use.
8. Wear appropriate protective glasses during operation.
Technical date
| S.N. | MATERIAL |
| 1a | Steel |
| 1b | Hard steels |
| 2 | Stainless steel |
| 3 | Cast iron |
| 4 | Titanium |
| 5 | Nickel |
| 6 | Copper/Copper alloys |
| 7 | Aluminum |
| 8 | Plastics |
| 9 | Cement |
Guide to running speeds
|
mat nr. MAX RPM |
3mm/0.123" 90,000 |
6mm/0.250" 50,000 |
10mm/0.375" 40,000 |
12mm/0.500" 35,000 |
16mm/0.625' 25,000 |
| 1a | 60,000-80,000 | 35,000-45,000 | 22,500-35,000 | 20,000-30,000 | 15,000-20,000 |
| 1b | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 2 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 3 | 45,000-80,000 | 22,500-45,000 | 15,000-35,000 | 11,000-30,000 | 9,000-20,000 |
| 4 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 5 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 6 | 45,000-80,000 | 22,500-45,000 | 15,000-35,000 | 11,000-30,000 | 3,000-20,000 |
| 7 | 30,000-80,000 | 15,000-45,000 | 10,000-35,000 | 7,000-30,000 | 6,000-20,000 |
| 8 | 30,000-80,000 | 15,000-45,000 | 10,000-35,000 | 7,000-30,000 | 6,000-20,000 |
| 9 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
ZIGONG(CHENGDU) JOINT CARBIDE CO., LTD is subsidiary of ZIGONG JOINT CARBIDE CO., LTD a professional manufacturer of tungsten carbide rotary tools and carbide material. We have two subsidiary companies, one is in Chengdu city, Sichuan Province and the other one is in Zigong City, Province.
Founded in 2007 at Zigong City, Sichuan Province. In China, we are the exclusive factory who has equipments from raw material to finished tools producing. Including Inclinable Wet Milling, Pressing, Low Pressusring Sintering, Five-axis CNC, Electronic Tool Surface Scanner, Hard and TRS Testor. The main products include Carbide burr/ Carbide burr blank/ Carbide rod, and Carbide nozzle. We exported to North America, Europe, Asia and so on. We've been contributing to make high class cheap products to the world.
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer of tungsten carbide since 2007. We can supply 20 tons tungsten carbide product per month. We can provide customized carbide products as per your requirements.
Q: How long is your delivery time?
A: Generally,it will take 7 to 25 days after order confirm.The specific delivery time depends on the specific product and the quantity you needed.
Q: Do you provide samples? iIs it free or charged?
A:Yes, we can offer a sample for free charge but the freight is at customers’ cost.
Q. Do you test all your goods before delivery?
A: Yes, we will do 100% test on our cemented carbide products before delivery.
