Rotary File Solid Tungsten Carbide Burrs Double Cut Rounded Cone Shape
100 PIECES
MOQ
$1.00 - $10.00 / Pieces
Price
Rotary File Solid Tungsten Carbide Burrs Double Cut Rounded Cone Shape
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Sichuan, China
Brand Name: KTS
Certification: ISO 9001:2008
Model Number: J/K/M/N
High Light:

Solid Tungsten Carbide Burrs

,

Rounded Cone Tungsten Carbide Burrs

,

Double Cut Carbide Rotary Burr

Payment & Shipping Terms
Packaging Details: PLASTIC CASE
Delivery Time: 7-30 Days
Payment Terms: T/T, Western Union
Supply Ability: 250000 Piece/Pieces per Month
Specifications
Materials: Tungsten Carbide
Type: SJ/SK/SL/SM
Color: Silver/Golden
LOGO: Customized
Application: Machining Iron,Steel Casting,Steel. Hardened Steel,Copper
Cutting Types: Single , Double , Aluminium & Diamond Cut, Coarse Cut
Certificate: ISO9001:2008
Port: Chengdu/Guangzhou/Shanghai/Shenzhen
Product Description

China Solid Tungsten Carbide Burrs Double Cut Rounded Cone Shape Rotary File Carbide Burr



Carbide burrs are widely used in metalworking, tool manufacturing, engineering, model engineering, wood carving, jewelery manufacturing, welding, chamfering, casting, deburring, grinding, cylinder head transplantation, engraving, aerospace, automobiles, It is used for dentistry and stone materials. Metal engraving, metal smithing, to name just a few.



Carbide Rotary Burrs is a great way to understand the mechanics of manual labor in the aviation industry, shipbuilding, automotive, machinery,

Carbide Rotary Burrs can be widely used in iron machining, steel casting, carbon steel, alloy steel, stainless steel, hardened steel, copper aluminum etc.

1.Picking various types of metal materials includes ≤HRC65 stainless steel.
2.In place of small emery wheels, without flour contamination.
3.To increase production 10 times can use hand tools and three to five times can use small emery wheels
4.Having a life ten times longer than a steel burr speed and times fivity than small emery wheels.
5.Complete machining different types and die holes.
6.Removing castings burrs, forgings and welding spatter from weld joints.
7.Chamfering angle, circular or flute circle on machine parts.
8.Connecting or piercing pipes.
9.Cleaning the transmission channel.
10.Grind the hole in the right place.



Technical date



S.N.

MATERIAL

1a

Steel

1b

Hard steels

2

Stainless steel

3

Cast iron

4

Titanium

5

Nickel

6

Copper/Copper alloys

7

Aluminum

8

Plastics

9

Cement



Guide to running speeds



mat nr.

MAX RPM

3mm/0.123"

90,000

6mm/0.250"

50,000

10mm/0.375"

40,000

12mm/0.500"

35,000

16mm/0.625'

25,000

1a

60,000-80,000

35,000-45,000

22,500-35,000

20,000-30,000

15,000-20,000

1b

60,000-80,000

30,000-45,000

19,000-30,000

15,000-22,500

12,000-18,000

2

60,000-80,000

30,000-45,000

19,000-30,000

15,000-22,500

12,000-18,000

3

45,000-80,000

22,500-45,000

15,000-35,000

11,000-30,000

9,000-20,000

4

60,000-80,000

30,000-45,000

19,000-30,000

15,000-22,500

12,000-18,000

5

60,000-80,000

30,000-45,000

19,000-30,000

15,000-22,500

12,000-18,000

6

45,000-80,000

22,500-45,000

15,000-35,000

11,000-30,000

3,000-20,000

7

30,000-80,000

15,000-45,000

10,000-35,000

7,000-30,000

6,000-20,000

8

30,000-80,000

15,000-45,000

10,000-35,000

7,000-30,000

6,000-20,000

9

60,000-80,000

30,000-45,000

19,000-30,000

15,000-22,500

12,000-18,000



Carbide rotary cutters are an effective way to achieve the mechanization of hand working operations. In the aircraft, shipbuilding, automotive, machinery,chemistry etc. Carbide rotary milling cutters can be widely used in machining iron, cast steel, carbon steel, alloy steel, stainless steel, hardened steel, l 'aluminum to copper, etc.



1.Machining of various kinds of metallic materials, including hardened steel ≤HRC65.

2.Instead of small emery wheels, no powder pollution.

3.Productivity increase of several dozen times compared to using hand tools and three to five times compared to using small emery wheels

4.Having a long life ten times that of high speed steel burrs and fifty times that of small emery wheels.

5.Finish machining various types of die cavities.

6.Elimination of burrs from castings, forgings and weld spatter on welded assemblies.

7.Chamfer angle, circular bead or flute on mechanical components.

8.Chamfering or deburring of pipes.

9.Polishing of the wheel channel.

10.Grinding the hole to a precise shape.



Features available across the range include:



Shake



  • Toughened and hardened steel shanks (above 6mm)
  • Provides rigidity and strength
  • Prevents bending and reduces vibrations, resulting in longer tool life
  • Ground to h6 (carbide) and h7 (steel) for improved holding

Ball Nose Geometry



  • Skip flute grinding
  • Increased strength at the centre
  • Reduced chance of swarf congestion and chipping
  • Improved cutting action closer to the centre

Brazing



  • Special brazing elements provide excellent braze strength
  • Excellent impact strength able to withstand high forces
  • Able to withstand higher temperatures without failing

We are committed to being the leading manufacturer and supplier of carbide burs in the world. Through continuous development of new and innovative products and services, using state-of-the-art technology and skilled, motivated people, we strive to provide you with cost-effective solutions and the support that you need to increase your competitive advantage.

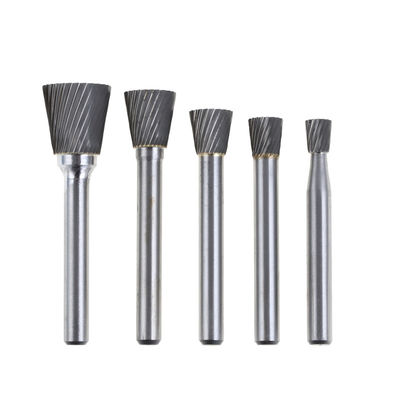

Rotary File Solid Tungsten Carbide Burrs Double Cut Rounded Cone Shape 0

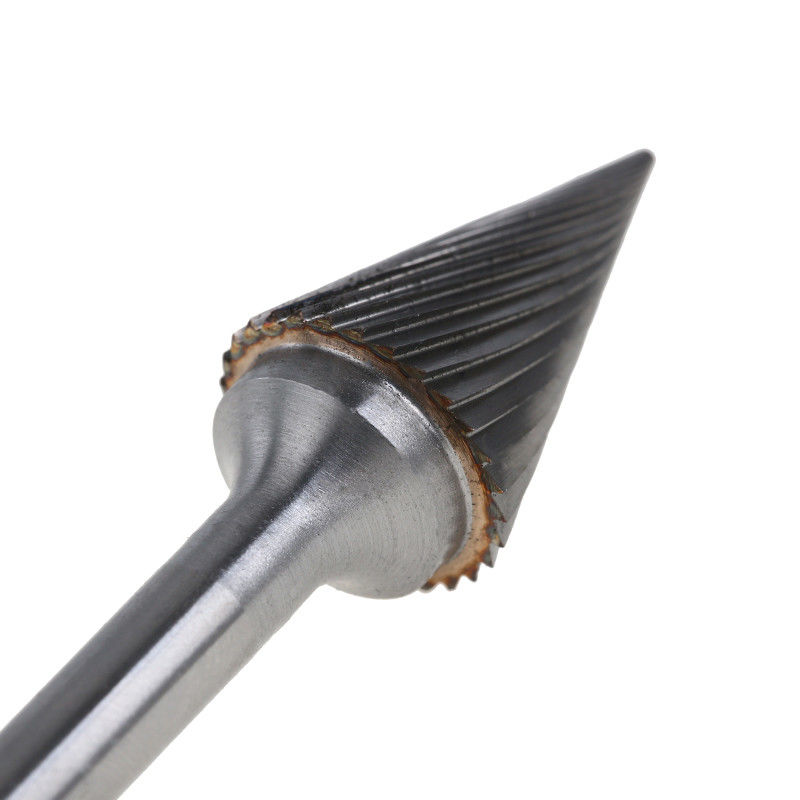

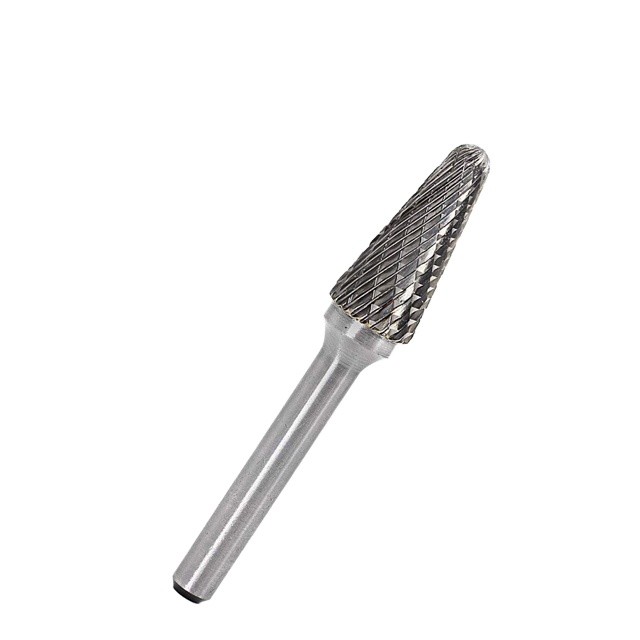

Rotary File Solid Tungsten Carbide Burrs Double Cut Rounded Cone Shape 1Rotary File Solid Tungsten Carbide Burrs Double Cut Rounded Cone Shape 2



About us



Zigong Jincheng Cemented Carbide Tools Co., Ltd. is one of the market leaders in China that produces and sells rotary burrs, teeth, bars, blanks, alloy plates, nozzles and more. We were established in China in 2007. As a tool company from raw material to finished product processing and research, we can provide semi-finished products, finished products, customized services and other services. Our products have been exported to more than 30 countries and regions in the United States, Britain, Germany, France, Mexico, Canada, Russia, Japan, Australia, and the Middle East. Chengdu Jinyuan New Material Co., Ltd. is a subsidiary of Zigong Jincheng Cemented Carbide Tools Co., Ltd., which is committed to providing customers with quality services, products and preferential prices.



Rotary File Solid Tungsten Carbide Burrs Double Cut Rounded Cone Shape 3Rotary File Solid Tungsten Carbide Burrs Double Cut Rounded Cone Shape 4Rotary File Solid Tungsten Carbide Burrs Double Cut Rounded Cone Shape 5
