890-950℃ Carbide Composite Rods and Tungsten Carbide Welding Rods with 150-280A Current for 440-450mm Hardfacing Repair

890-950℃ Carbide Composite Rods and Tungsten Carbide Welding Rods with 150-280A Current for 440-450mm Hardfacing Repair

Brand Name:	KINGTOOLS，WUWTOOLS
Model Number:	composite alloy rods
MOQ:	10 KG
Price:	29.99-35.99 USD
Payment Terms:	L/C,T/T,Western Union,,paypal etc.

Detail Information

Product Description

Detail Information

Place of Origin:

China，Sichuan

Certification:

ISO9001-2008

Hardness:

>160HB

HRA:

>90.0

Operating Temperature:

890-950℃

Overall Length:

440~450mm

Material Composition:

70% W, 30% Cu/Ni

Operating Current:

150-280A

Packaging Details:

Foam paper + paper box

Highlight:

890-950℃ Carbide Composite Rods

150-280A Tungsten Carbide Welding Rods

440-450mm Hardfacing Composite Rods

Product Description

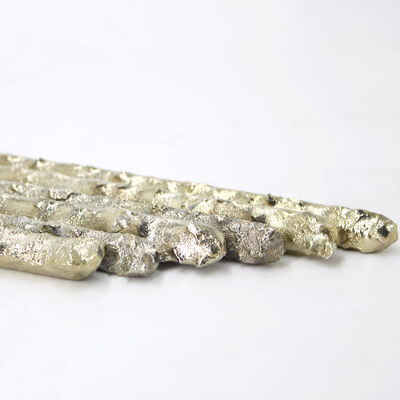

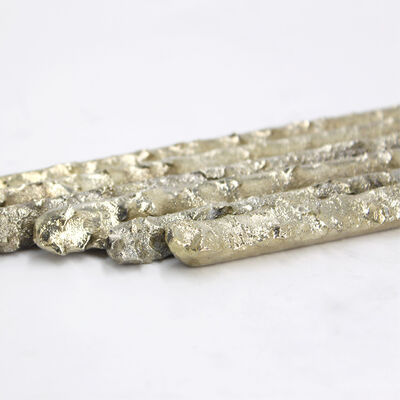

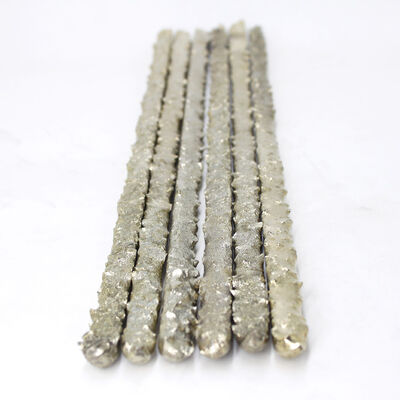

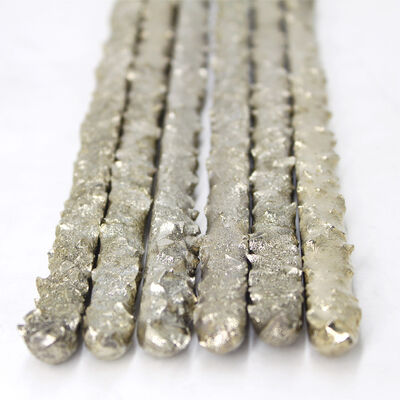

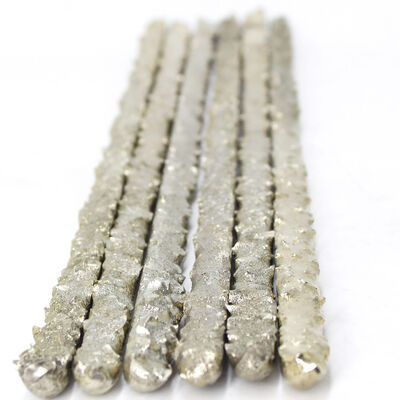

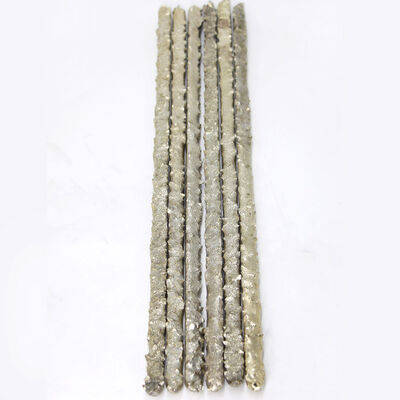

Description of Carbide Composite Rods:

Tungsten carbide composite rods, specifically designed for safeguarding high-wear components in the oil and gas drilling, geothermal, mining, and geological exploration industries, cater to a range of critical equipment such as washover shoes, stabilizers, down-the-hole drill bits, reamers, drill rods & subs, and more.

KINGTOOLS proudly manufactures high-caliber tungsten carbide welding rods, meticulously crafted from sintered tungsten carbide particles and a high-tensile alloy. The welding rod substrate is meticulously selected from copper or nickel, with the coating serving both a functional and identifying role. The application of the tungsten carbide welding electrode is executed through the oxyacetylene brazing method.

For precision cutting applications, tungsten carbide hardfacing welding rods featuring larger particles are recommended, while smaller particles are preferred for applications requiring enhanced wear resistance.

Specifications of Carbide Composite Rods:

Product Name	Tungsten Carbide Composite Rod
Material	Tungsten Carbide Particle(70%), CuSnZn(30%)
Color	Golden,Sliver
Grade	YGN70,YGC70,YGU70,YNN70
Customized	Our factory supports Size, Coating, Shape, Logo, Sample Test etc. customization.
Application	Stabilizers, Reamers, Drill Pipe Jjoints, Construction Drilling, Hydraulic-cutter, Pipe Cutter Blades, Core Bit, Scraper, Twist Drill, Milling and Grinding Shoes etc.

Composite Welding Rod with Copper matrix alloy: Composite Welding Rod with nickel matrix alloy:

AWS: RBCuZn-A AWS: RBCuZn-D

Size Chart of Carbide Composite Rods:

YD carbide particles and YD type welding rod is divided into the following eight grades according to the particle size of cemented carbide:

Advantages of Carbide Composite Rods:

First, to increase the speed of downhole milling and cutting.

Second to protect the surface of tools subject, to abrasive wear,maintaining full guage on stabiliz-ers, guides keyseat wipers, and other downhole tools.

High Strength
High Hardness
Abrasion Resistance
Long Service Life
Easy to Replace

Applications of Carbide Composite Rods:

Carbide composite rod has wear and cutting properties coupled by high-end weldability and low fuming, allowing the material to use in stabilizers reamers, drill pipe joints, construction drilling, hydraulic-cutter, twist drill, etc.
