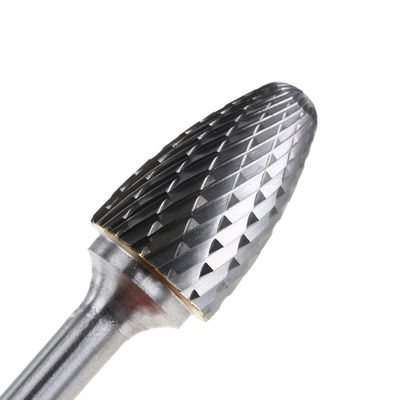

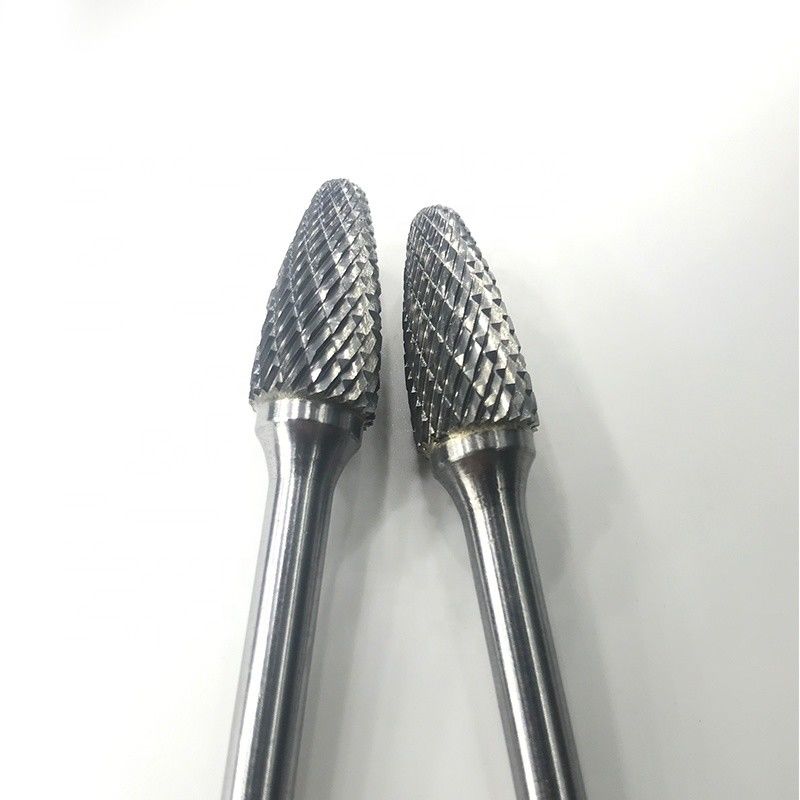

F1225 Tungsten Flame Carbide Burr / Carbide Grinding Burrs Long Service Life

20 Piece/Pieces
MOQ
$1.00 - $10.00 / Pieces
Price
F1225 Tungsten Flame Carbide Burr / Carbide Grinding Burrs Long Service Life
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Tungsten Carbide Rotary Files
Material: Tungsten Carbide
Size: Full Size
LOGO: Customized
Sample: Supplied
Certificate: ISO9001:2008
Type Of Cut: Standard Double-cut,fine Cut,fine Double-cut,etc.
Business Type: Manufacture & Trade Integration
High Light:

rotary deburring bits

,

rotary cutting bits

Basic Infomation
Place of Origin: Sichuan, China
Brand Name: KTS
Certification: ISO9001:2008
Model Number: F
Payment & Shipping Terms
Packaging Details: Plastic box in Standard export carton
Delivery Time: 7-30 Day
Payment Terms: T/T, Western Union
Supply Ability: 250000 Piece/Pieces per Month
Product Description
F1225 Tungsten Flame Carbide Burr / Carbide Grinding Burrs Long Service Life
Product Description

Material: 100% of raw materials.

Tolerance: strict tolerance extent control, which can reach +/-0.01mm;

Grades: various for choice: YG6, YG8, YG8C, YG11C,YG15C and so on.

Types: standard, conical, parabolic,ballistic

Physical performance: high hardness and impact toughness, very good mechanical & chemical stability.



F1225 Tungsten Flame Carbide Burr / Carbide Grinding Burrs Long Service Life 0
Product name
Tungsten Carbide Rotary Files
Brand
KTS
shank hardness
HRA 89-92.5
Material
Tungsten Carbide
shank diamter
 3mm/6mm/8mm/10mm...
Packing
set packing
speed of tool
15000-45000Turn/min
Certificate
 ISO9001:2008
F1225 Tungsten Flame Carbide Burr / Carbide Grinding Burrs Long Service Life 1
F1225 Tungsten Flame Carbide Burr / Carbide Grinding Burrs Long Service Life 2
How to use the carbide burrs



1.Speed /RPM



The speed at which you use your carbide bur in your rotary tool will depend on the material you're using it on and the contour being produced but it's safe to say you do not need to exceed speeds of 35,000 RPM. The table below shows some approximate speeds.
Diameter of Burr RPM
2.35mm or 3/32" 17,000 - 26,000
3mm or 1/8" 17,000 - 26,000
6mm or 1/4" 11,000 - 16,500
12mm or 1/2" 8,000 - 12,000
16mm or 5/8" 7,650 - 11,500



2.Apply only a little pressure


As with all drill bits and burrs, let the burr do the work and apply only a little pressure otherwise the cutting edges of the flutes will chip away or become smooth too quickly, reducing the life of your burr.


3.Keep The Carbide Burr On The Move


When using your carbide burr try not to keep it still for too long as this will prevent the burr from digging and jabbing into your material causing unsightly marks and roughness.



Advantage of our carbide burrs



·Can Process a variety of metal and non-metal, processing hardness would up to HRA89-92.5
·In a great part of the work, it can replace the petiole small wheel, and no dust pollution.
·High production efficiency, the processing efficiency is several times higher than file, nearly 10 times higher than small wheel stalk.
·High product processing quality, high finish, can process out a various of high-precision mold cavity.
·Long life, the durability is 10 times higher than high-speed steel cutting tool, 200 times higher than small grinding wheel.
·Easy to use, safe and reliable, can reduce labor intensity, improve the working environment.
·Suitable for processing these metal and non-metal, such as cast iron, cast steel, bearing steel, high carbon steel, chrome-nickel alloy, bronze, brass, and ceramic tile, marble, jade, bone, etc.



F1225 Tungsten Flame Carbide Burr / Carbide Grinding Burrs Long Service Life 3


Risk guarantee

·100% raw material, no waste tungsten carbide added
·Do not use through hole, tail hole welding
·100% factory direct sales
Certifications
F1225 Tungsten Flame Carbide Burr / Carbide Grinding Burrs Long Service Life 4
F1225 Tungsten Flame Carbide Burr / Carbide Grinding Burrs Long Service Life 5
1.Sea Transportation
2.Air Transportation
3.Land Transportation
4.Railway Transportation
